Prop

Uploading

Uploading Your Prop

Basis allows you to load an Prop .BEE file from a remote URL location, which is also required for other users in a networked session to also load the assets.

You can add your prop password directly into the url for your .BEE file by https://locationofBeefile.BEE#(Base64Encode(Password))
Which you are appending # and Base64Encoded string of your password.

In order to support this, you will need to direct link to a remote location. For this example, we will use Google Drive.

(Google Drive supports the direct link of files up to 100MB due to their Virus Scanning policy.)

Upload the BEE file to Google Drive, or any hosting provider that allows direct links to files without login.

  • Create a Folder on your Drive and set its sharing settings to "Anyone with the link."

Now when you drag your files into this Folder, you will not individually need to set that permission.

  • Click the Hamburger Menu on the Top Right of the asset you have just uploaded into the folder.
  • Find "Share" and click "Copy Link."

We will need to look into the URL to grab the information we need for your BEE file.

Example:

https://drive.google.com/file/d/YourIDBringsAllTheLagToMyYard/view?usp=sharing

We want to copy the unique identifier inside of the URL and add it to the following:

https://drive.google.com/uc?export=download&id=

Example:

https://drive.google.com/uc?export=download&id=YourIDBringsAllTheLagToMyYard

Google Drive Direct Link Converter

DO NOT UPLOAD YOUR GENERATED PASSWORD FILE OR SHARE IT

Loading in Basis

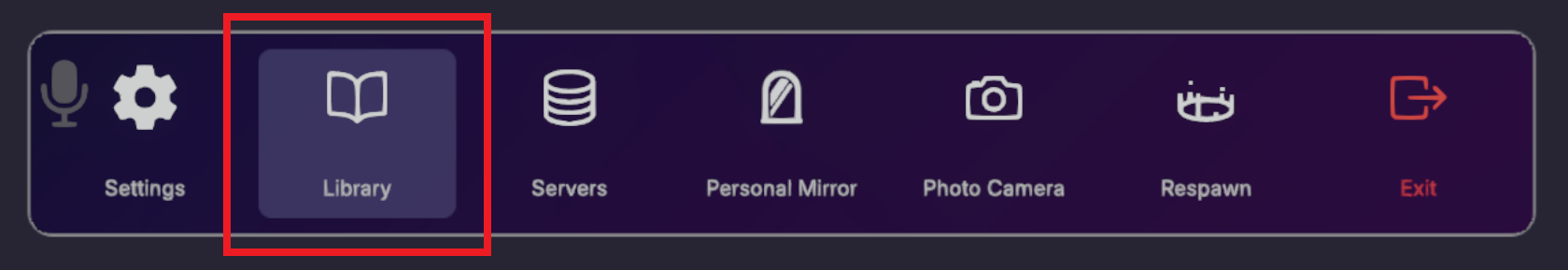

Load up Basis, open the menu, and select Library.

Basis menu

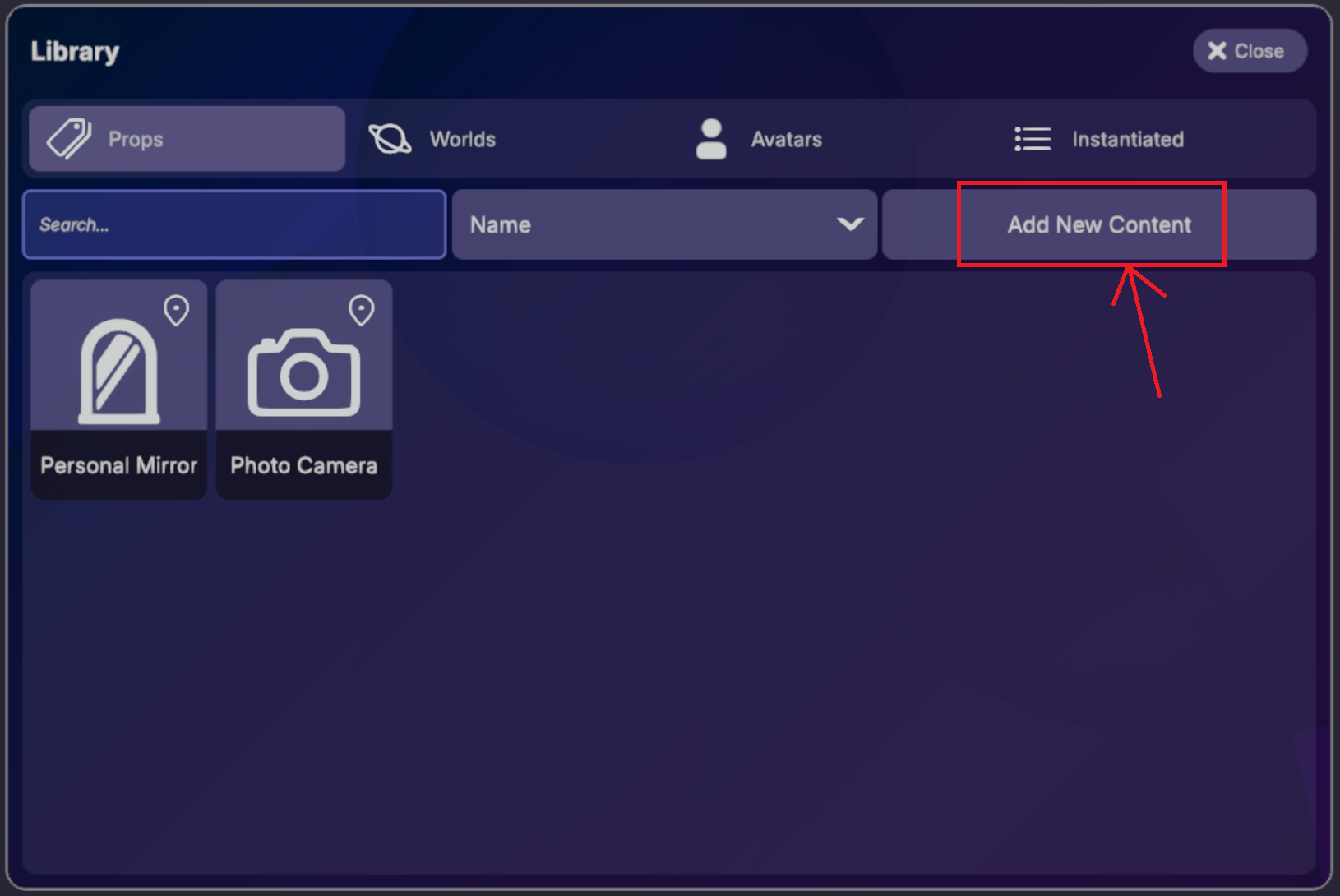

In the Library menu, select 'Add New Content' near the top-right of the window.

Add New Content button

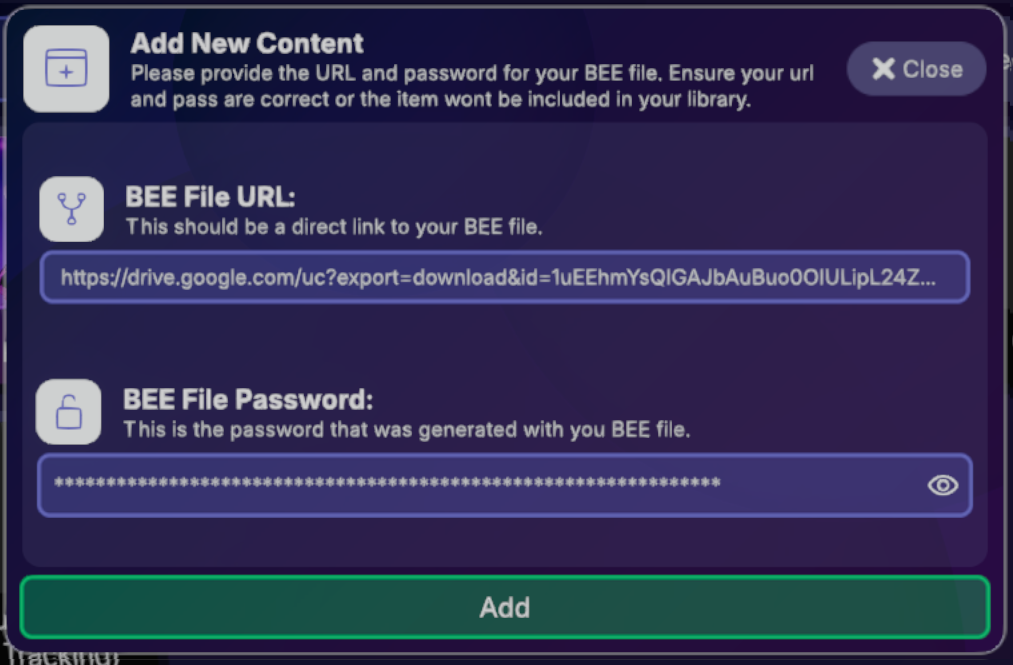

Paste the BEE file URL into the BEE File URL field and the SUPER SECRET ENCRYPTED PASSWORD into the BEE File Password field then click 'Add' below.

BEE file URL & password

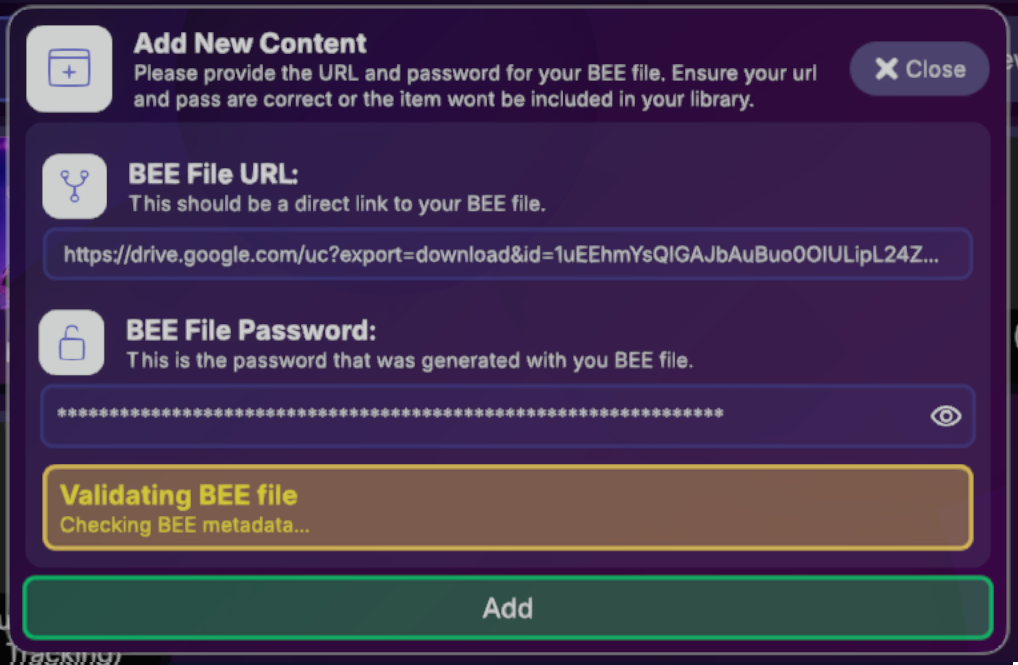

The contents of the BEE file will be validated before getting added to your library.

Add BEE file button

Prop Management

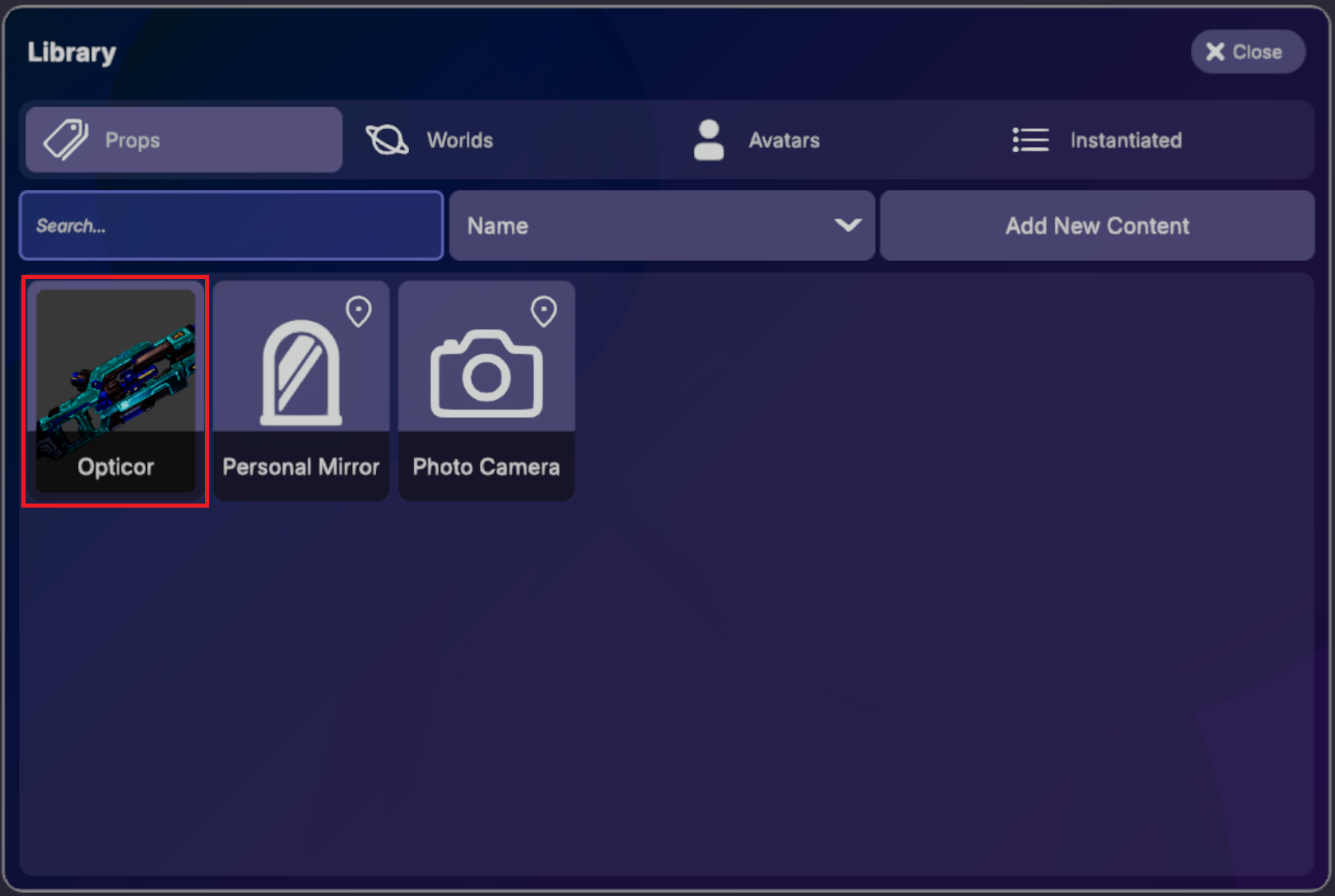

You can find the prop recently added in to the Library.

New Prop in Library

Props can be Spawned, Deleted or Shared with others in the world, by clicking on the corresponding buttons at the bottom of the window.

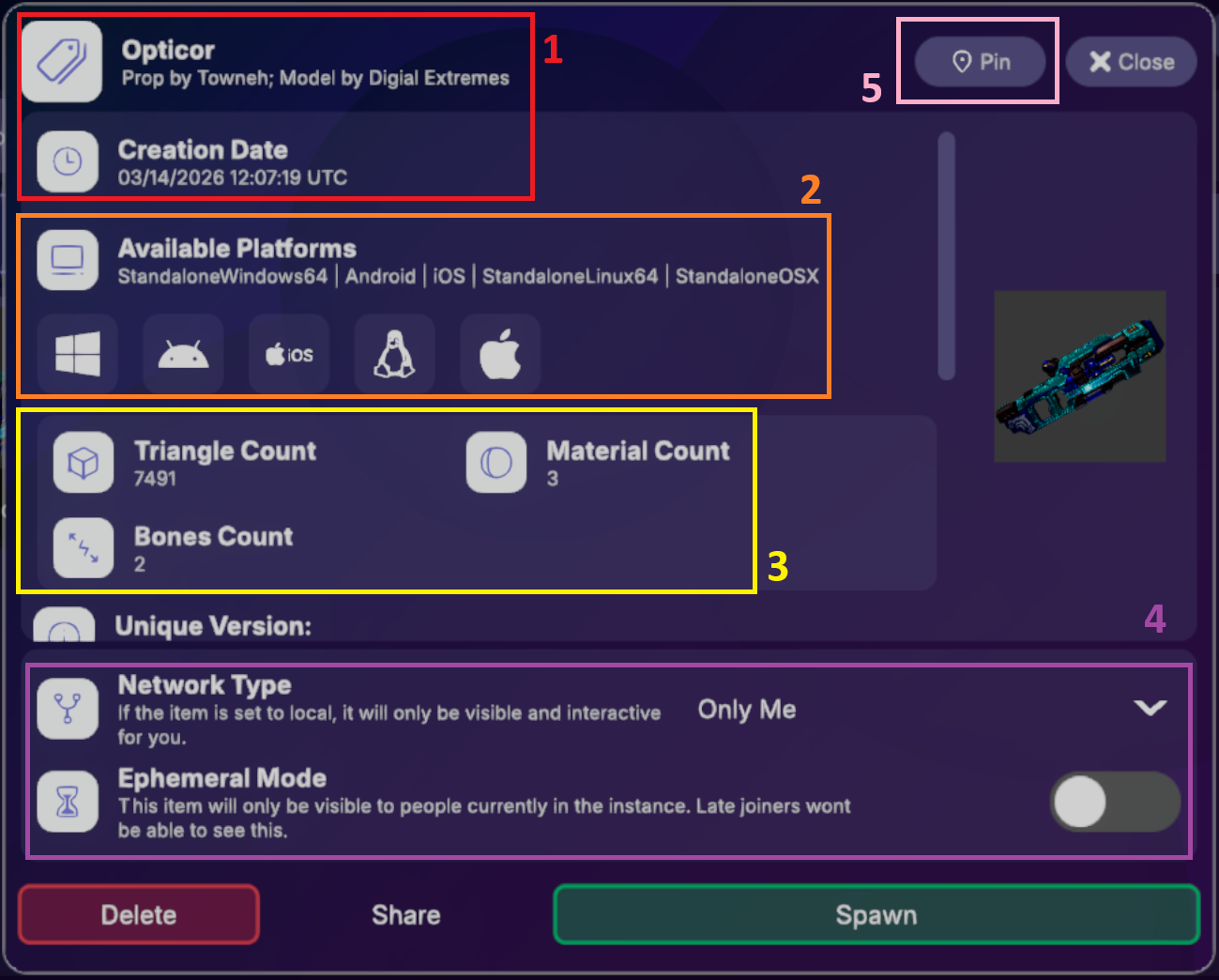

Prop Details

In addition, you will also see a number of useful information panels here:

  • (1) Prop Information - The details panel displays the compilation timestamp, Title, and Description
  • (2) Platform Compatibility - Icons indicate which OS platforms support this prop
  • (3) Statistics - Displays Triangle, Material & Bone counts
  • (4) Characteristics - Allows you to set the networked behaviour and persistance of the prop
  • (5) Pin - You can pin this Prop to the top main menu window

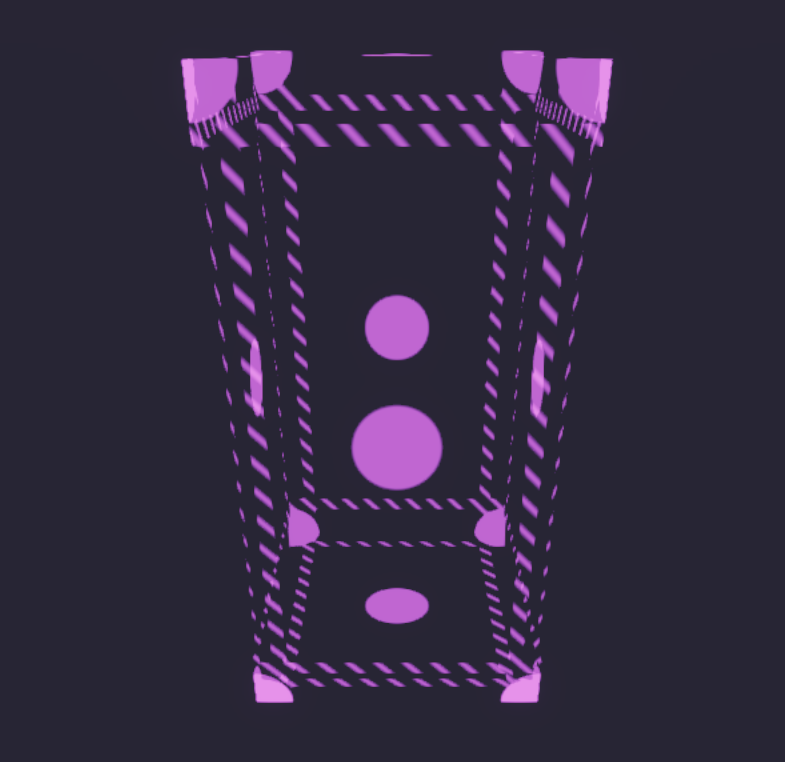

Spawn Bounding Box

When clicking the 'Spawn' button, you can then locate the exact position in which to spawn the Prop in to the world.

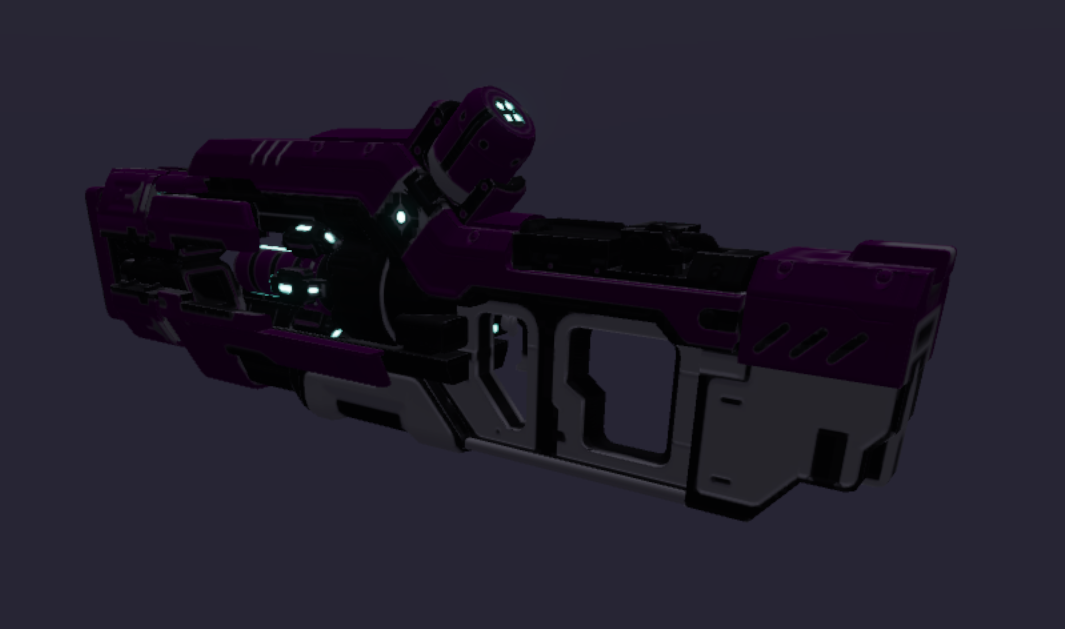

Prop Spawned

After a brief moment the asset will then appear, either locally or networked, depending on the prop characteristics.
